Fatures
Paper cutting up to A3 Wide paper (318mmx469.5mm), the first in this industry
Automatically cut A3 Wide paper into:
Business cards: 20 sheets
Postcards: 8 sheets
A4 paper: 2 sheets
High speed cutting
A3 Wide paper: 7 sheets/min.
Business cards: 100 sheets/45 sec.
Postcards: 100 sheets/2 min.
Paper cutting including cutting margins possible in all directions for all card and document sizes
Accommodate to versatile designs by full-bleed printing such as logo
Various document types and sizes
Fine paper, rough paper, copy paper, art paper, coated paper
A4, A4 Wide, B4, A3 and A3 Wide with 0.12mm to 0.4mm thick
Automatic document feeding by air suction system
Clean printing by automatic document feeding and cutting up to 500 sheets (0.12mm thick) using air suction system
Specifications

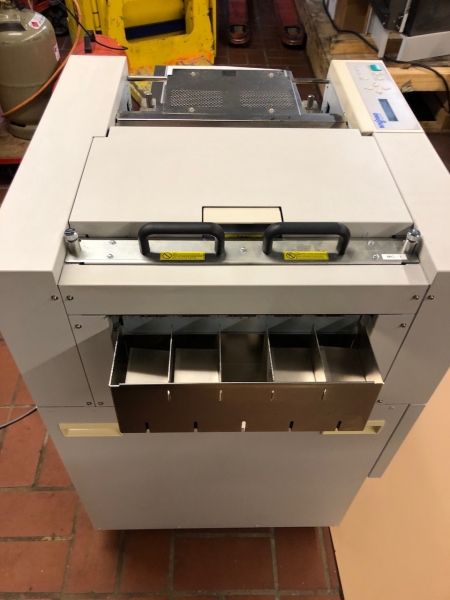

Configuration Stationary with casters

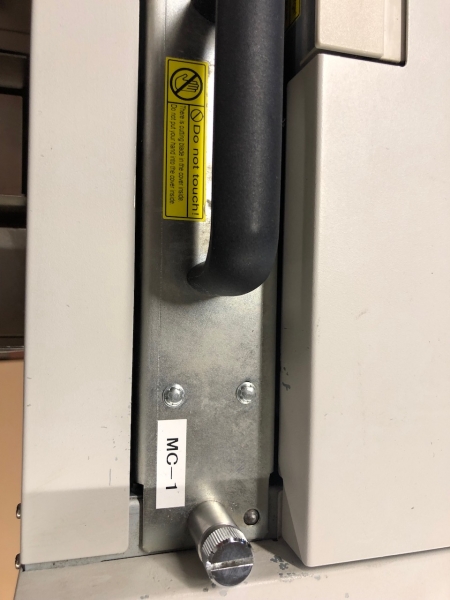

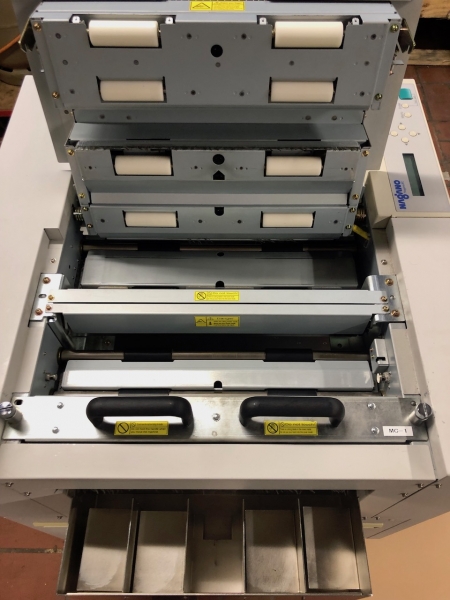

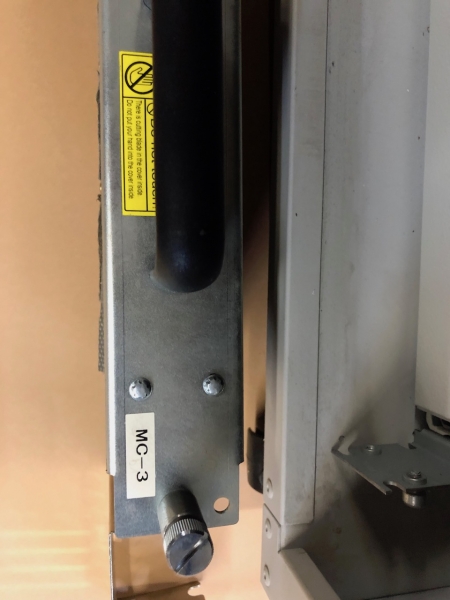

Cutting method Fixed long blade (paper feed direction) and removable rotary blade unit (paper width direction)
Cut size Business cards, postcards, tickets, A3, A4 (by exchanging rotary blade unit)
Paper size A4, A4 Wide, B4, A3, A3 Wide (318mmx469.5mm)
Paper thickness & weight 0.12mm to 0.4mm, 90 to 280Kg
Number of cut sheets for A3 Wide Business cards:20; postcards:8; A3:1; A4:2
Cutting speed 7 sheets/min. (A3 Wide)

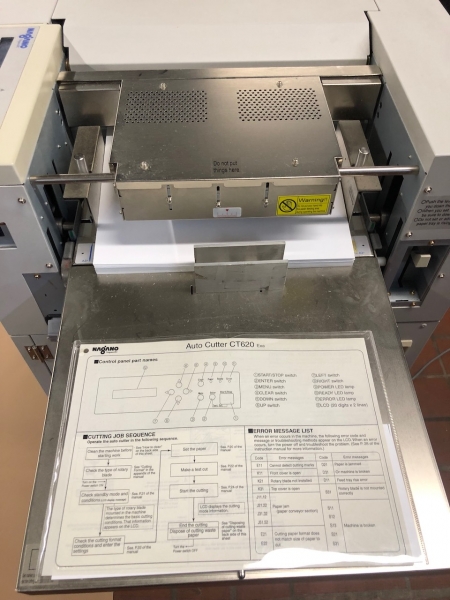

Paper feed 500 sheets in single stack (0.12mm thick) by air suction system

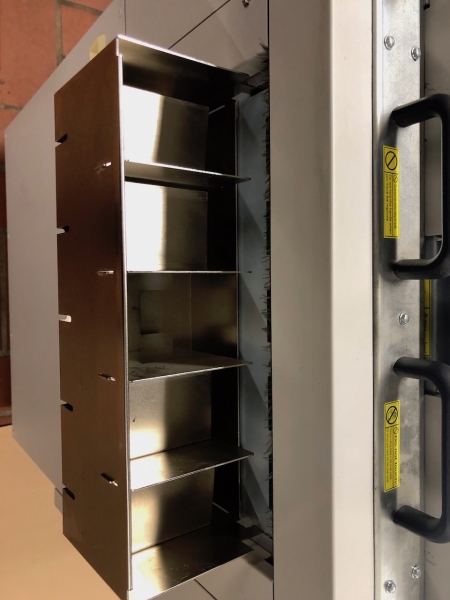

Paper exit Natural separation with Max. 650 sheets stack each row (0.12mm thick)
*Paper chip hopper equipped
Dimensions 1032(W) x 615(D) x 917(H)mm
Weight Approx. 70Kg

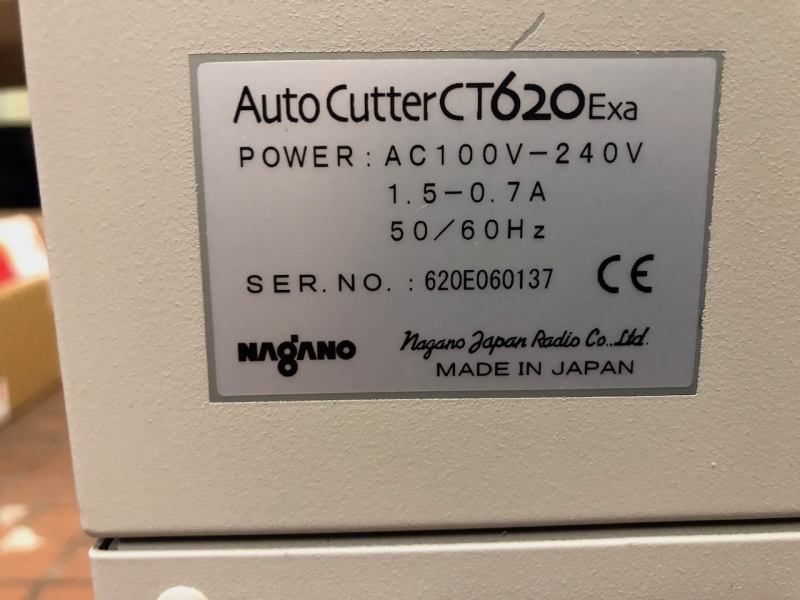

Power supply Universal 100-240V AC -10% to +10%, 1.5-0.7A, 50/60Hz
Power consumption 400W or less during operation
Operational environment 10-32degree C, 20-80%RH (no dew condensation)
Acoustic noise 65dB or less
Nur 750.000 Schnitte
Only 750.000 cuts
